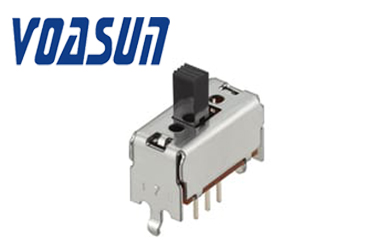

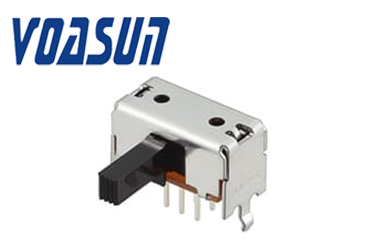

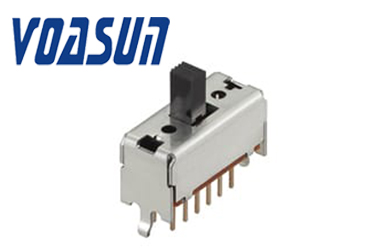

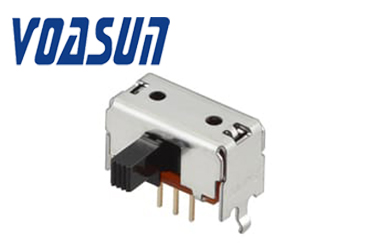

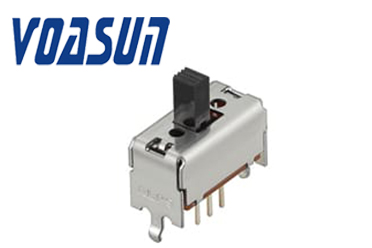

SSSF系列——ALPS滑動開關

應用于廣闊領域，銷售量大的大型(xing)(xing)通用型(xing)(xing)。操作方(fang)向：Vertical Horizontal ? 安裝(zhuang)高度：8.5mm ? 行程：2.0mm ? 最大額定值：0.1A 30V DC ? 電路數：1/2/4-poles。
產品詳情
我司是ALPS授權代(dai)理商，ALPS系(xi)列產品均有在售，需(xu)要了解(jie)價格(ge)、包裝數，交期以及產(chan)品資料請咨詢在線客服！

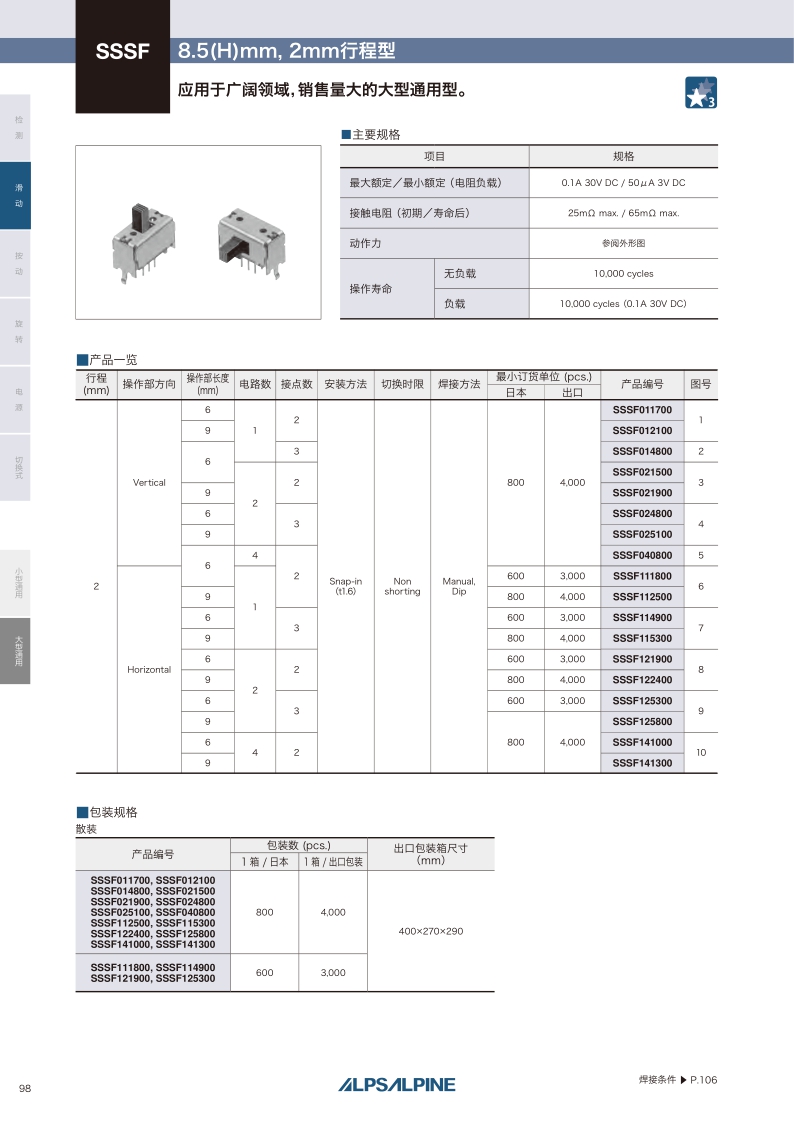

產品編號 照片 行程 操作部方向 操作部長度 電路數 接點數 動作力 安裝方法 切換時限 焊接方法 尺寸(W×D×H)
SSSF011700 照片 2.0mm Vertical 6.0mm 1 2 Refer to the dimensions. Snap-in (t1.6) Non shorting Manual, Dip 14.5×7.0×8.5mm
SSSF012100 照片 2.0mm Vertical 9.0mm 1 2 Refer to the dimensions. Snap-in (t1.6) Non shorting Manual, Dip 14.5×7.0×8.5mm
SSSF014800 照片 2.0mm Vertical 6.0mm 1 3 Refer to the dimensions. Snap-in (t1.6) Non shorting Manual, Dip 14.5×7.0×8.5mm
SSSF021500 照片 2.0mm Vertical 6.0mm 2 2 Refer to the dimensions. Snap-in (t1.6) Non shorting Manual, Dip 14.5×7.0×8.5mm
SSSF021900 照片 2.0mm Vertical 9.0mm 2 2 Refer to the dimensions. Snap-in (t1.6) Non shorting Manual, Dip 14.5×7.0×8.5mm
SSSF024800 照片 2.0mm Vertical 6.0mm 2 3 Refer to the dimensions. Snap-in (t1.6) Non shorting Manual, Dip 14.5×7.0×8.5mm
SSSF025100 照片 2.0mm Vertical 9.0mm 2 3 Refer to the dimensions. Snap-in (t1.6) Non shorting Manual, Dip 14.5×7.0×8.5mm
SSSF040800 照片 2.0mm Vertical 6.0mm 4 2 Refer to the dimensions. Snap-in (t1.6) Non shorting Manual, Dip 16.5×7.0×8.5mm
SSSF111800 照片 2.0mm Horizontal 6.0mm 1 2 Refer to the dimensions. Snap-in (t1.6) Non shorting Manual, Dip 14.5×7.0×8.5mm
SSSF112500 照片 2.0mm Horizontal 9.0mm 1 2 Refer to the dimensions. Snap-in (t1.6) Non shorting Manual, Dip 14.5×7.0×8.5mm
SSSF114900 照片 2.0mm Horizontal 6.0mm 1 3 Refer to the dimensions. Snap-in (t1.6) Non shorting Manual, Dip 14.5×7.0×8.5mm
SSSF115300 照片 2.0mm Horizontal 9.0mm 1 3 Refer to the dimensions. Snap-in (t1.6) Non shorting Manual, Dip 14.5×7.0×8.5mm
SSSF121900 照片 2.0mm Horizontal 6.0mm 2 2 Refer to the dimensions. Snap-in (t1.6) Non shorting Manual, Dip 14.5×7.0×8.5mm
SSSF122400 照片 2.0mm Horizontal 9.0mm 2 2 Refer to the dimensions. Snap-in (t1.6) Non shorting Manual, Dip 14.5×7.0×8.5mm
SSSF125300 照片 2.0mm Horizontal 6.0mm 2 3 Refer to the dimensions. Snap-in (t1.6) Non shorting Manual, Dip 14.5×7.0×8.5mm
SSSF125800 照片 2.0mm Horizontal 9.0mm 2 3 Refer to the dimensions. Snap-in (t1.6) Non shorting Manual, Dip 14.5×7.0×8.5mm
SSSF141000 照片 2.0mm Horizontal 6.0mm 4 2 Refer to the dimensions. Snap-in (t1.6) Non shorting Manual, Dip 16.5×7.0×8.5mm
SSSF141300 照片 2.0mm Horizontal 9.0mm 4 2 Refer to the dimensions. Snap-in (t1.6) Non shorting Manual, Dip 16.5×7.0×8.5mm

SSSF系列用(yong)途(tu)：

Audio / TV:音響
